I wanted to incorporate something into this project to provide proper six-axis controls for player movement as one of the main features. Unfortunately when I went looking for suitable controllers, initially I only found finished flight-stick controllers which had a few issues:

  • Far too expensive at approx $150 AUD
  • They already had integrated controller circuits, somewhat defeating the purpose of custom DIY hardware
  • They already had USB connectors, unsuitable for integration into my project unless I use a more expensive controller with USB host support

They looked great for a finished product but didn't really suit what I wanted.

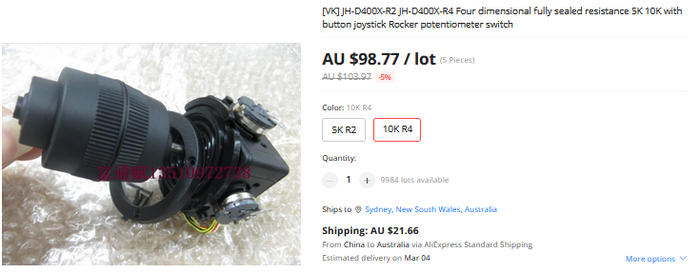

Eventually, I found a much cheaper option which was probably more suited to the industrial tactility that I wanted. There's a number of cheap 3-axis joysticks with a single button out there, called PTZ sticks. These are originally intended for use in video surveillance systems or other camera control systems - hence the name (PTZ = Pan, Tilt, Zoom).

They are much less ergonomic than the flight stick, but also only 10% of the price, and expose simple wiring for the axes and the button, much better for what I wanted to use them for.

(The price and quantity has changed since I purchased them, they were $20 AUD each including shipping at the time)

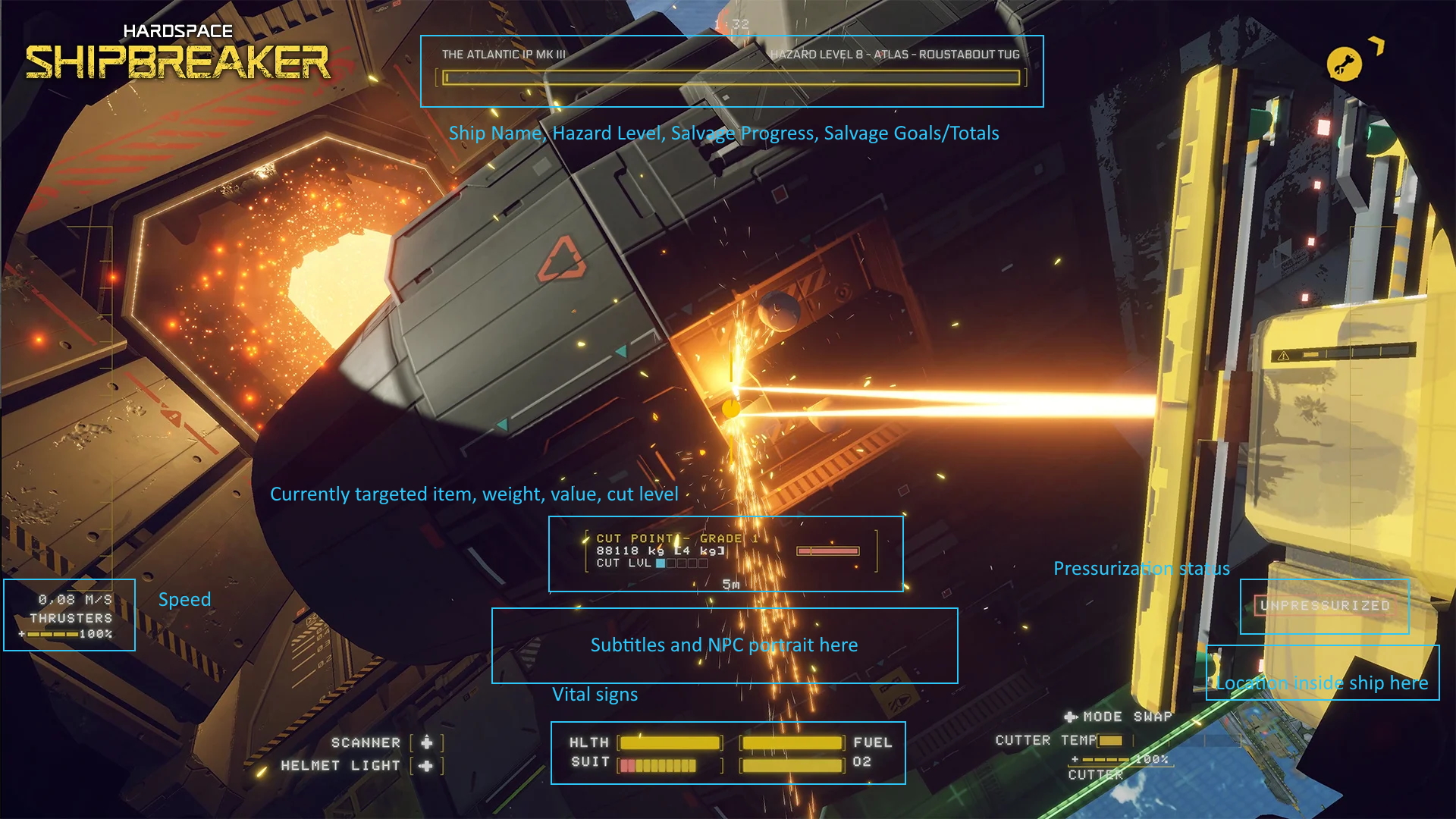

I then started to look at the game's UI and decide what information could be translated to displays or other output devices I could include on my controller. Here's the main bits of information available:

With those additional pieces of information identified, I needed to take a look at the key mappings for the game to consider what other buttons were required. this list includes:

  • Grab Left Hand
  • Grab Right Hand
  • Push item away
  • Brake
  • Scanner
  • Swap tool mode
  • Swap tool head
  • Deploy tether

Putting all of this together I had some kind of idea of what I was going to require, and rummaging through my parts boxes I settled on the following elements:

  • 20x4 LCD for the currently targeted item properties
  • 20x4 LCD for salvage status, pressure levels, location
  • An existing multiplexed 3 10-element bar graph with button and toggle switches, for the vital stats
  • A multiplexed seven-segment display for showing the amount of time in the shift
  • A 128x160 TFT display for showing the subtitles including the icon of the speaker
  • A panel containing assorted buttons and toggles for the remaining inputs

For the primary microcontroller, I went with STM32L073CZ for a few reasons:

  • Cost - I already had 10 or so of them on hand, and new STM chips are incredibly expensive
  • Board support - I already had a PCB fabbed to suit them
  • Plenty of I/O and USB support
  • Large amount of Flash and RAM - this particular model has 192K Flash and 20KB RAM, good for working with the TFT screen
